Stone Patterns
Tailored™ 6-Piece Pattern
Pattern option for 1 3/8 inch custom Tailored™ (gauged & rectified) Bluestone paving, and 1/2 inch Bluestone gauged tile options.
Pieces are cut nominally for a 1/4 inch joint.

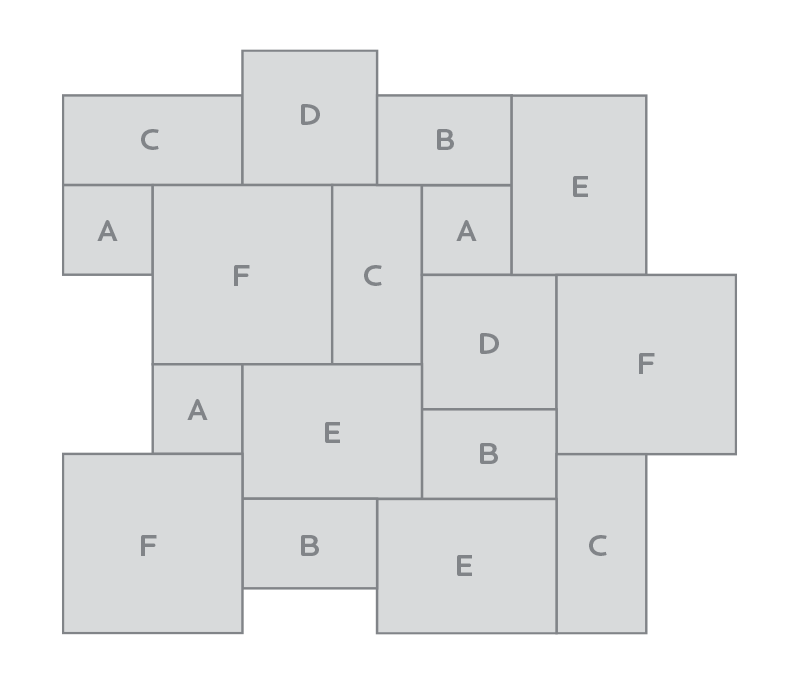

Illustration represents a 32.76 sq ft repeating pattern.
3 pcs, 11 in x 11 in, (A) 0.84 sq ft ea, 8%
3 pcs, 11 in x 16.5 in, (B) 1.26 sq ft ea, 12%
3 pcs, 11 in x 22 in, (C) 1.68 sq ft ea, 15%
2 pcs, 16.5 in x 16.5 in, (D) 1.89 sq ft ea, 12%
3 pcs, 16.5 in x 22 in, (E) 2.52 sq ft ea, 23%
3 pcs, 22 in x 22 in, (F) 3.36 sq ft ea, 30%
*Note that while each pattern is associated with different stone products, you are not obligated to follow this pattern when installing your stone. These patterns were developed to correspond with the way the stone is produced and packaged, the purpose being to assist the installer with a pre-determined pattern and corresponding stone sizes.
