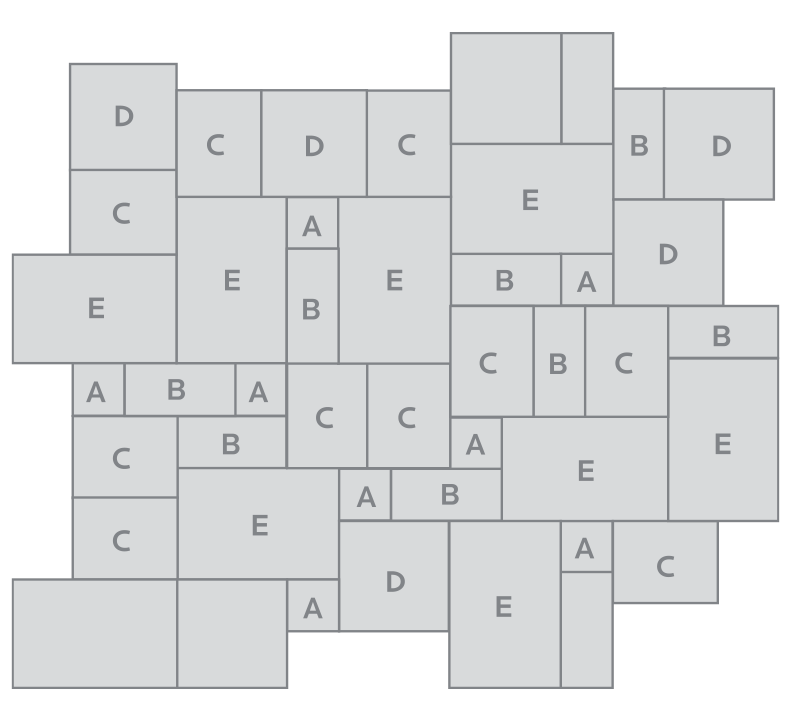

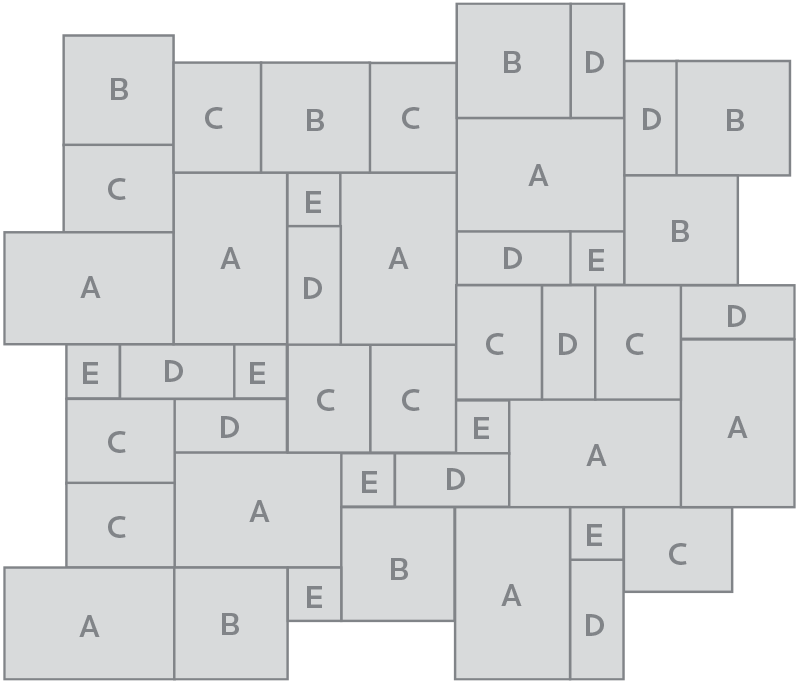

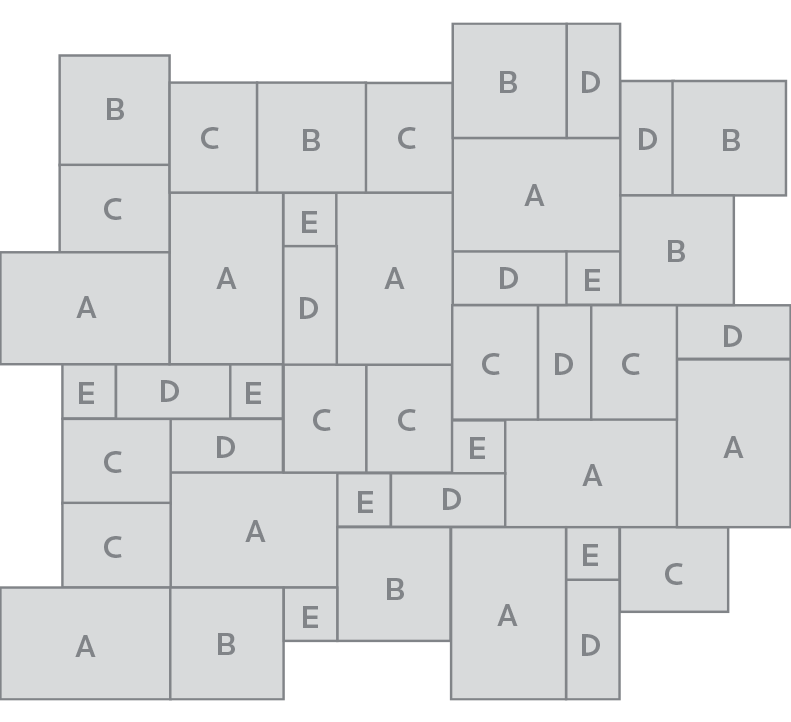

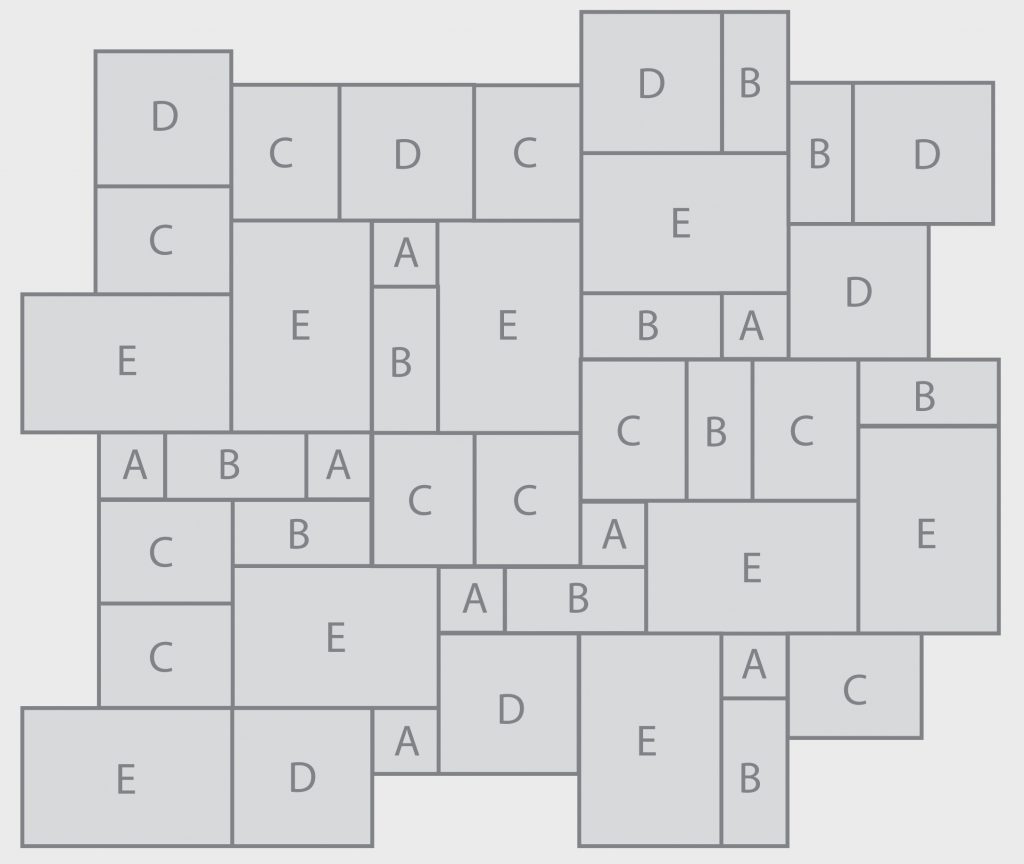

5-Piece Stone Pattern

Pieces are cut nominally for an approximate 1/4 inch to 3/8 inch joint.

Each 120 sq ft project pack contains the following:

8 pcs, 11 in x 11 in, (A) .84 sq ft ea, 5%
10 pcs, 11 in x 22 in, (B) 1.7 sq ft ea, 14%
10 pcs, 17 in x 22 in, (C) 2.6 sq ft ea, 21%
8 pcs, 22 in x 22 in, (D) 3.36 sq ft ea, 22%
9 pcs, 22 in x 33 in, (E) 5.04 sq ft ea, 38%



*Note that while each pattern is associated with different stone products, you are not obligated to follow this pattern when installing your stone. These patterns were developed to correspond with the way the stone is produced and packaged, the purpose being to assist the installer with a pre-determined pattern and corresponding stone sizes.

Download 5-Piece Stone Pattern PDF
